SAMOA Industrial
NEW extrusion guns
EX 250/500
Designed for Maximize
comfort & lightness

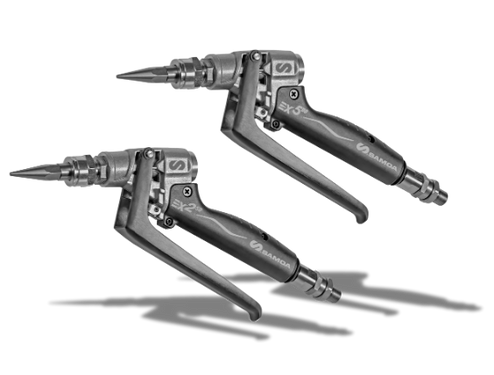

NEW extrusion guns EX 250/500
Designed for Maximize
comfort & lightness
Features
Long-lasting reusable nozzle
Safe quick-lock system
to prevent accidents
to prevent accidents
Easy trigger pull
to prevent user fatigue
to prevent user fatigue
Ergonomic handle &
low thermal conductivity
low thermal conductivity
Precision at
our core
our core
Precision at our core

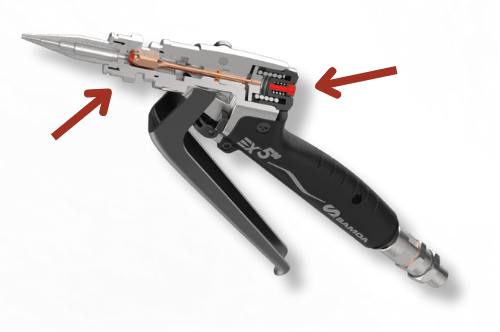

Ball valve
The tungsten carbide ball resists wear from abrasive materials and viscous fluids under high pressure.
Excellent accuracy
A manual adjustment screw provides accurate flow rate control across a wide range of demanding dispensing applications.
Markets & Applications
Technical information
Specifications
Maximum working pressure
Maximum fluid temperature
Inlet fluid connection
Weight (with no nozzle and swivel)
Wetted parts
250 bar (3,620 psi) / 500 bar (7,250 psi)
70 ºC (158 ºF)
1/4" NPSM (M)
400g (0.88 lb) / 600g (1.32 lb)
Aluminum, stainless steel, brass, polyamide, UHMWPE, tungsten carbide
Order information
EX 250
EX 500
26E202
26G202
Dimensions
About
SAMOA Industrial
With over 60 years of expertise, SAMOA Industrial is a globally recognized leader in fluid handling solutions. From our origins in Spain, we have expanded to over 110 countries, delivering innovative and reliable pumping technology across multiple industries. Our commitment to quality and innovation drives us to develop advanced products like the PIVOT Series, ensuring efficiency and performance in every application. Trust SAMOA for cutting-edge solutions backed by experience and a passion for excellence.
Interested in the extrusion guns EX250/500?
Speak to Our Sales Team!
Interested in the extrusion guns EX250/500?
Speak to Our Sales Team!
Remember main advantages of our extrusion guns
EX 250 & EX 500:
EX 250 & EX 500:
More ergonomic
Easier to clean
Lighter
Safer
