Ref.: 390100

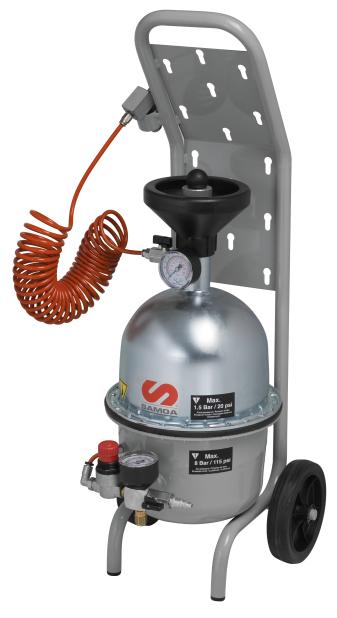

WASTE BRAKE FLUID MOBILE SUCTION UNIT, 5 L
Ref.: 390100
WASTE BRAKE FLUID MOBILE SUCTION UNIT, 5 L
Aspirator for brake fluid. Pneumatic unit for draining and renewing the
fluid from the hydraulic brake circuit of vehicles, including circuits
with braking corrector device. The unit is equipped with a module with a
self-supporting tank (5 l) and a lower pre-chamber for accumulating high
pressure air (8 bar). The self-supporting tank is divided into two
chambers by an internal elastic diaphragm, the upper chamber for new
brake fluid and the lower chamber for air under stabilized pressure (1.5
bar). It allows the drainage and the renewal of the liquid of the
circuit by a single person in a fast and clean way. It includes: Set of
five coupling plugs to the brake fluid circuit reservoir. Universal
adapter cap. Drain tank set with bleed valve adapters. Instruction book: 839800.
Technical data
Documentation
More information
| Type | Suction |
| Compatible fluids | Waste brake fluid |
| Reservoir capacity | 5 l (1,32 gal) |
