Introduction

In the world of industrial fluid handling, Pneumatic Diaphragm Pumps, as known AODDP (Air Operated Double Diaphragm Pumps), play a crucial role. These pumps are a type of positive displacement pump that uses compressed air as a power source to move liquids. They consist of two flexible diaphragms that move back and forth to create a pumping action, enabling the transfer of fluids. AODD pumps are used in a wide range of industries to transfer various types of fluids, from chemicals and solvents to food products and wastewater.


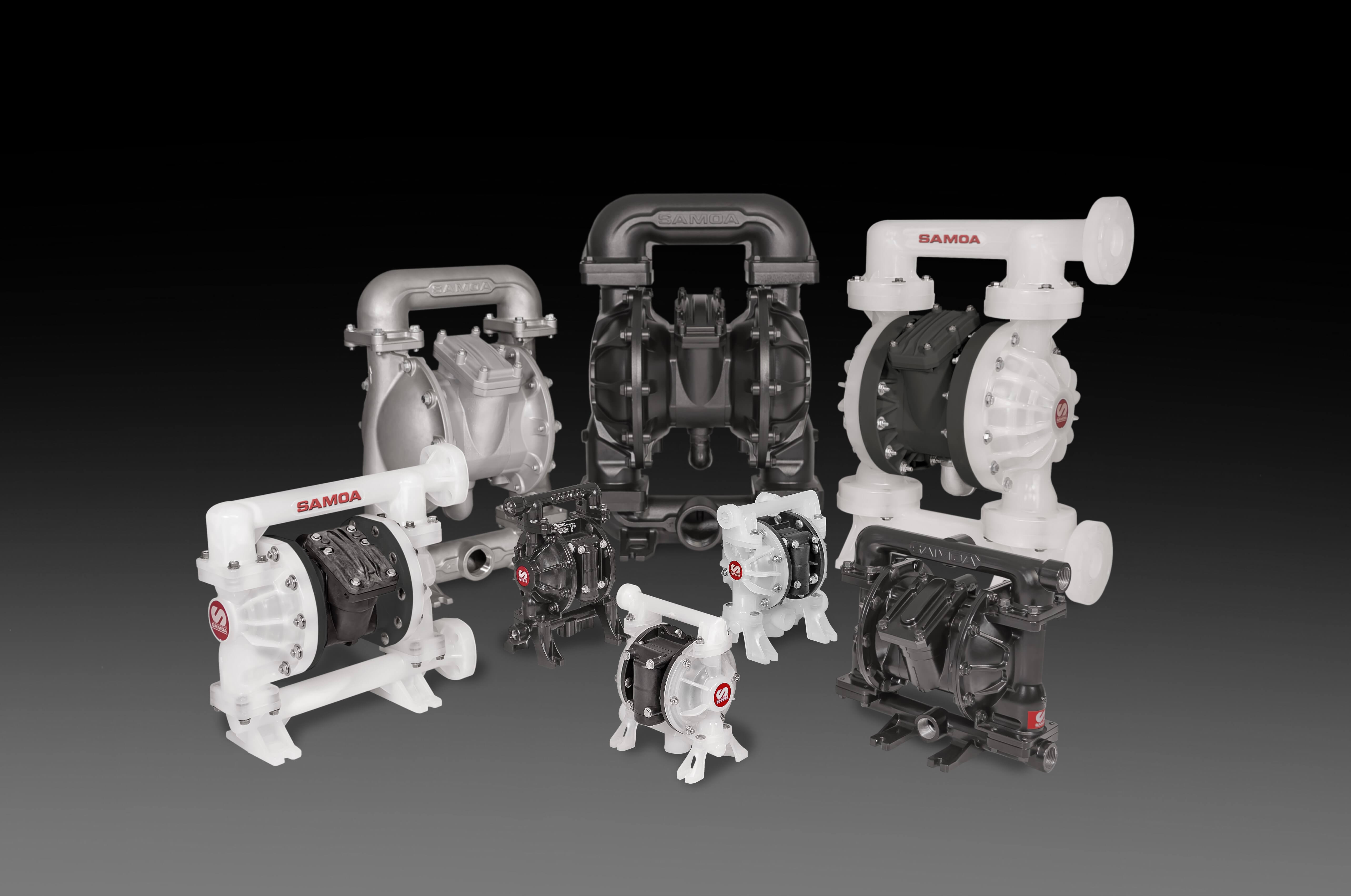

What are pneumatic diaphragm pumps?

Air operated diaphragm pumps are designed to handle a variety of fluids, including those that are abrasive, corrosive, viscous, or shear-sensitive. The primary components of an AODD pump include:

• Diaphragms: Flexible membranes that create chambers and move alternately to draw in and push out fluid, enabling continuous flow through the equipment.
• Air Valves: Control the flow of compressed air into the pump, driving the movement of the diaphragms.
• Inlet and Outlet Manifolds: Channels that direct the flow of fluid into and out of the pump.
• Housing and Construction Materials: The pump body, which can be made from various materials depending on the application, such as aluminum, stainless steel, or plastic.

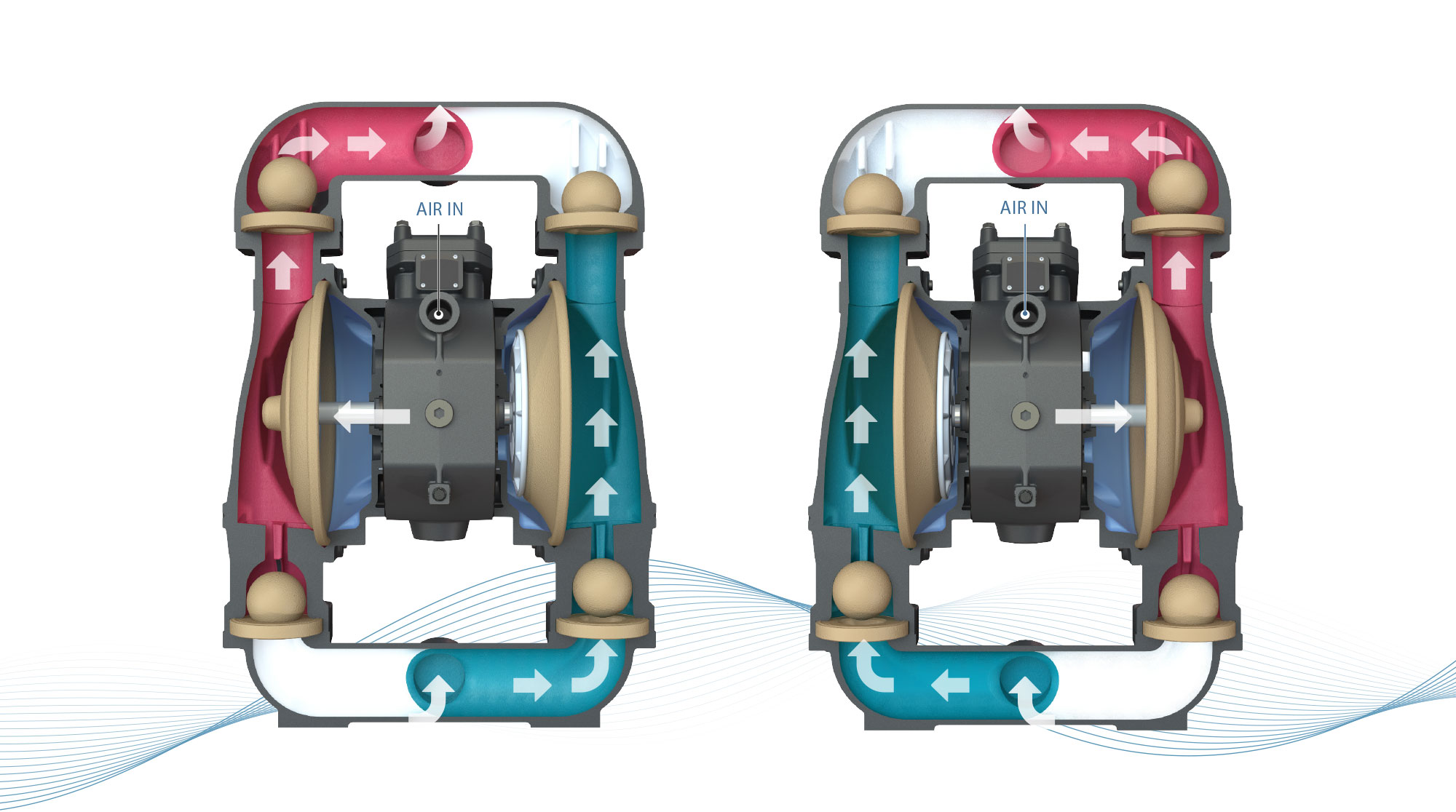

How does a diaphragm pump work?


Basis: diaphragm pump working principle

The operation of an AODD pump is based on the alternating movement of two diaphragms. These diaphragms are connected by a common shaft, and compressed air is used to move them back and forth.


Step-by-Step explanation of the pumping cycle.



1. Inlet Stroke: Compressed air enters the air valve, pushing the first diaphragm outward. This movement creates a vacuum in the first diaphragm chamber, drawing fluid into the pump through the inlet manifold.
2. Discharge Stroke: As the first diaphragm reaches the end of its stroke, the air valve directs compressed air to the second diaphragm. This pushes the second diaphragm outward, forcing the fluid out of the pump through the outlet manifold.
3. Alternating Action: The air valve then shifts, allowing the first diaphragm to move back, expelling any remaining air and drawing more fluid into the chamber. This cycle repeats, ensuring continuous fluid flow.



Advantages of pneumatic diaphragm pumps

AODD pumps offer several advantages that make them suitable for a wide range of applications:

• Versatility: Capable of handling a variety of fluids, including abrasive, corrosive, viscous, and shear-sensitive materials.
• Self-Priming: Can prime themselves, making them easy to start and operate.
• Dry Running Capability: Can run dry without damage, allowing for greater flexibility in operation.
• Explosion-Proof: Safe for use in hazardous environments due to the absence of electrical components.
• Low Shear: Gentle pumping action preserves the integrity of shear-sensitive fluids.



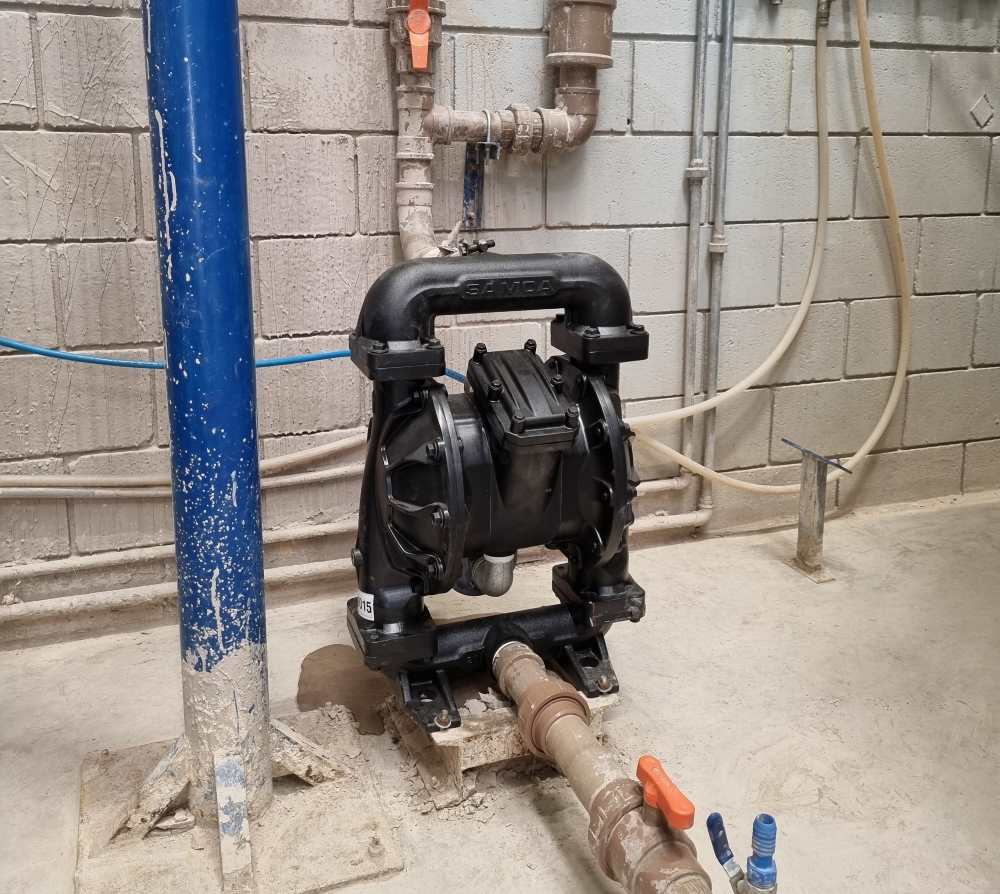

Applications of pneumatic diaphragm pumps & uses.

Air operated pumps for industrial applications

AODD pumps are widely used in industrial market for transfer applications, such as:

• Chemical Processing: Handling acids, alkalis, solvents, and other aggressive chemicals.
• Paints and Coatings: Transferring paints, varnishes, and adhesives.
• Food and Beverage: Pumping food products, beverages, and ingredients, including those with particulates.


Pharmaceuticals and cosmetics

In the pharmaceutical and cosmetics industries, AODD pumps are used for:

• Sterile Fluid Transfer: Moving sterile and high-purity fluids.
• Creams and Lotions: Pumping viscous creams, gels, and lotions.
• Pharmaceutical Ingredients: Handling sensitive and expensive pharmaceutical ingredients.

Mining and construction


In mining and construction, AODD pumps are ideal for:

• Slurry Transfer: Moving abrasive slurries and sediments.
• Concrete and Mortar: Pumping concrete and mortar mixtures.
• Dewatering: Removing water from construction sites and mines.

Wastewater treatment and environmental applications

AODD pumps play a vital role in environmental applications, including:

• Wastewater Treatment: Handling sludge, chemicals, and treated water.
• Environmental Cleanup: Pumping contaminated fluids and chemicals.
• Oil Spill Response: Transferring oil and other hazardous materials during cleanup operations.

Maintenance and troubleshooting



Routine maintenance tips

To ensure optimal performance and longevity of AODDP regular maintenance is essential:

• Inspect Diaphragms: Check diaphragms for wear and tear and replace them as needed.
• Clean Air Valves: Regularly clean air valves to prevent blockages and ensure smooth operation.
• Check Seals and Gaskets: Inspect seals and gaskets for leaks and replace them if necessary.

Common Issues and Solutions


• Air Valve Problems: Ensure air valves are clean and properly lubricated. Replace worn or damaged valves.
• Diaphragm Wear and Tear: Replace diaphragms that show signs of cracking or excessive wear.
• Leakage Issues: Check for leaks in seals and gaskets and tighten or replace as needed.

Importance of using genuine spare parts

Using genuine spare parts ensures compatibility and reliability. Avoid generic parts that may not meet the specifications and quality standards of the original components.

Choosing the best diaphragm pump

Factors to consider

When selecting an AODD pump, consider the following factors:

• Fluid Type and Viscosity: Ensure the pump materials are compatible with the fluid being handled.
• Flow Rate Requirements: Determine the required flow rate to select a pump with adequate capacity.
• Pressure and Temperature Conditions: Choose a pump that can withstand the operating pressure and temperature conditions of the application.



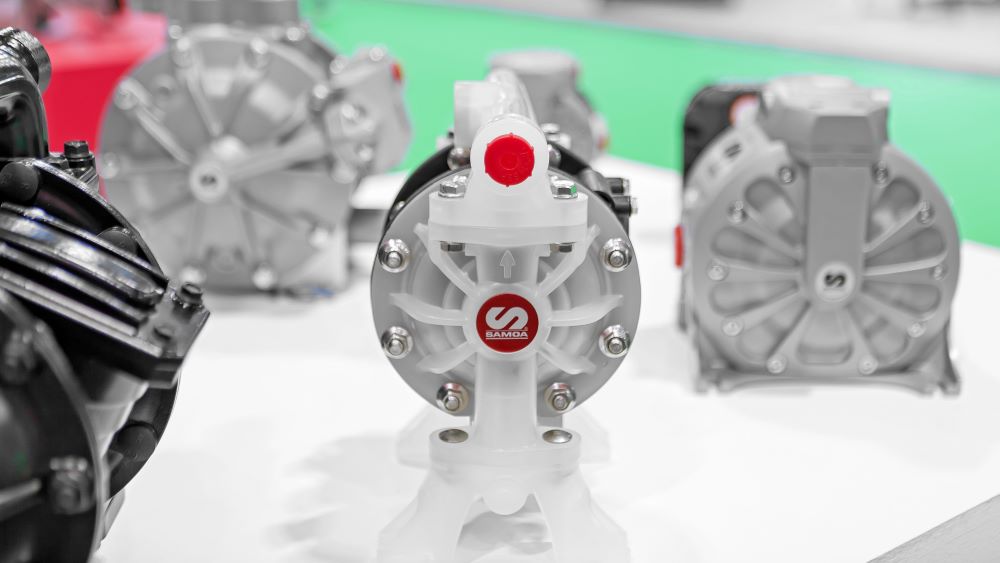

Customization options and material compatibility


Many AODD pumps offer customization options to suit specific application requirements. Consider the following:

• Diaphragm Material: Choose diaphragms made from materials that are resistant to the fluid composition and temperatures involved.
• Pump Housing Material: Select housing materials that can withstand the operating conditions and fluid properties.

Air-operated double diaphragm pumps (AODDP) use various materials for different components, including:

• Polypropylene: Often used for the pump body and diaphragm.
• Stainless Steel: Commonly used for the pump body, manifolds, and valve balls and seats.
• PTFE (Teflon): Typically used for diaphragm and wetted parts.
• Santoprene: Frequently used for diaphragms and wetted parts.
• PVDF: Used for the pump body, diaphragms, and wetted parts in high-demand applications.
• Aluminum: Used for the pump body and other structural components in less demanding applications.

Conclusion

Pneumatic diaphragm pumps are essential tools in various industries, offering versatility, reliability, and durability. Understanding their operation, advantages, and applications can help businesses make informed decisions when selecting and maintaining these pumps.

By choosing the right AODDP and performing regular maintenance, companies can ensure efficient and trouble-free fluid handling operations. Whether in chemical processing, food and beverage, pharmaceuticals, or environmental cleanup, AODD pumps provide a robust and flexible solution for a wide range of fluid transfer needs.
