Ref.: 537631

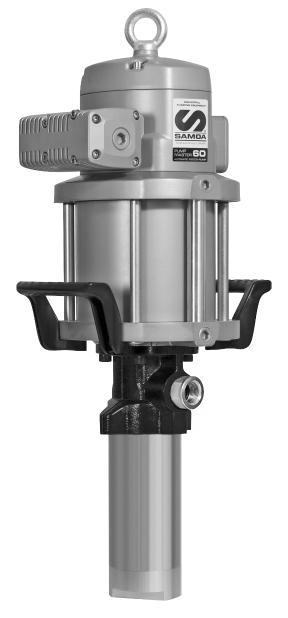

PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 6:1, STUB, NPT
Ref.: 537631
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 6:1, STUB, NPT

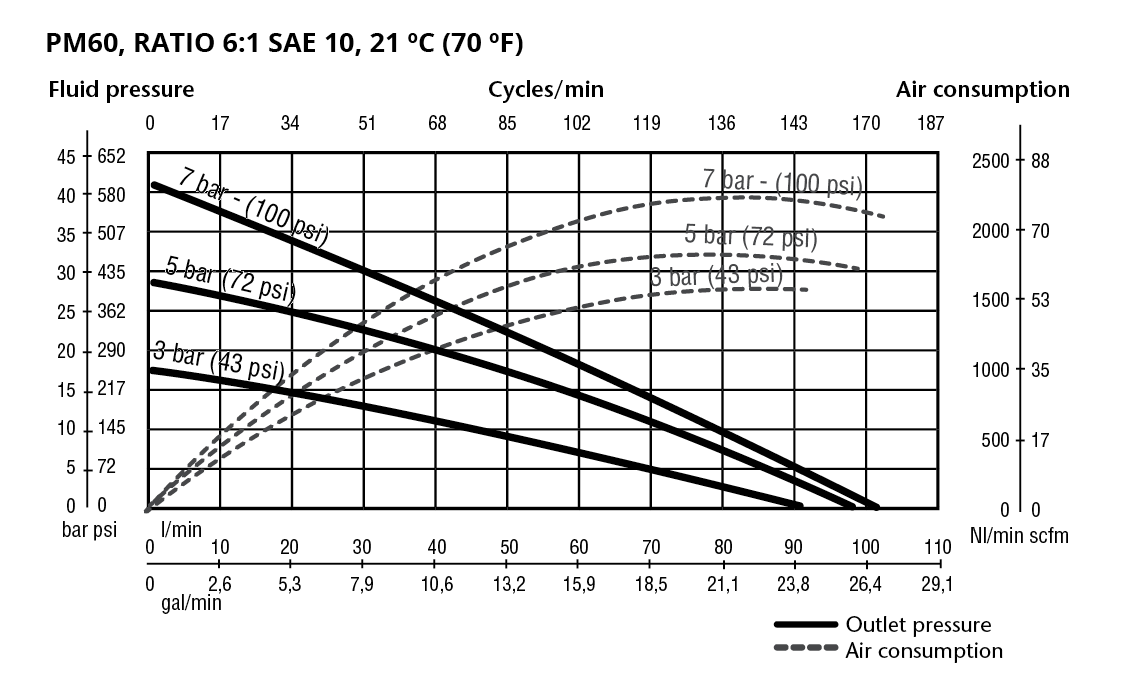

PM60 series air operated piston pumps. Double acting air operated medium pressure and high delivery pump, for large installations with simultaneous operation outlets and applications that require large, constant delivery rates. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 60 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery. Instruction book: 853809.
About this product:
File 537631
Technical data
Documentation
More information
| Fluids | Oil |
| Compatible fluids | Oil, Transmission fluid |
| Pump mounting | Universal stub pump |
| Pressure ratio | 6:1 |
| Air pressure operating range | 1,5-12 bar (21,75-174 psi) |
| Air consumption | 1100 NL/min (39 scfm) |
| Maximum outlet pressure | 72 bar (1044 psi) |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Delivery per cycle | 35 l (9,25 gal) |
| Cycles per minute (aprox.) | 60 cycles |
| Delivery | 35 l/min (9,2 gal/min) |
| Maximum free flow delivery | 100 l/min (26,4 gal/min) |
| Air inlet | 1/2" NPT (F) |
| Fluid inlet | 1 1/2" NPT (F) |
| Fluid inlet type | Ball check |
| Fluid outlet | 3/4" NPT (F) |
| Wetted materials | Cast iron, Aluminium, Nickel, Steel, Polyurethane, NBR |
| Pump tube material | Carbon steel |
| Sound level | 80 dB |
| Tube height | 200 mm (7,9") |
| Total height | 716 mm (28,2") |
| Weight | 19 kg (42 lb) |

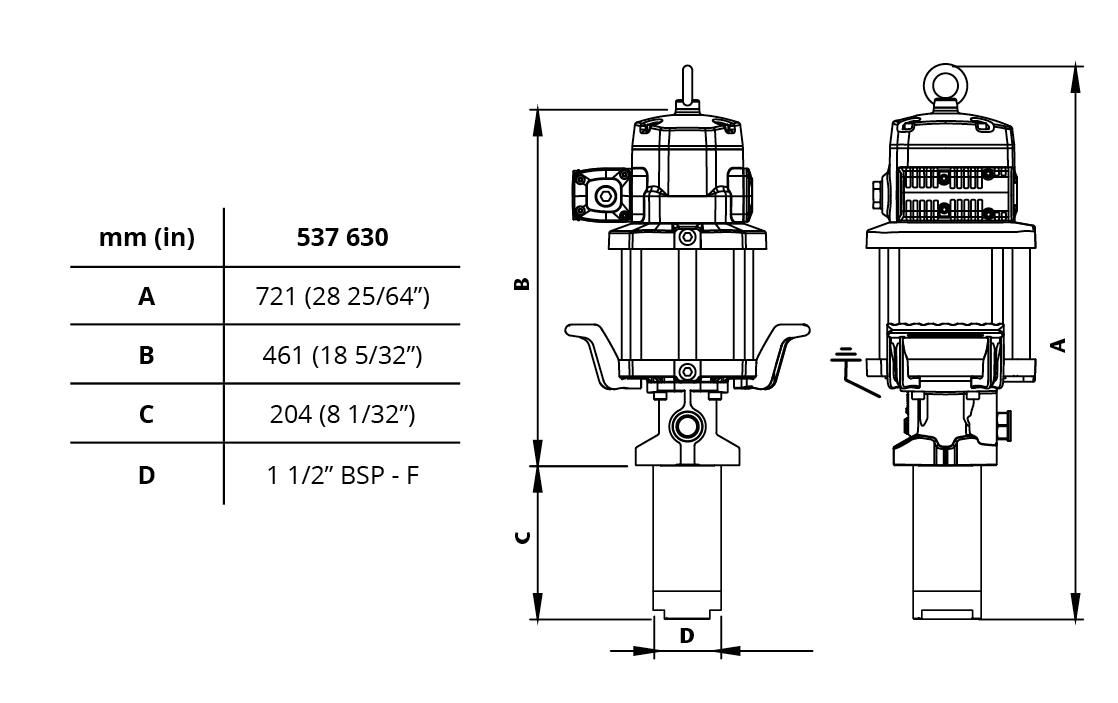

Models
| Code | Fluids | Pump mounting | Fluid outlet | Tube height | Total height |
|---|---|---|---|---|---|
| 537631 | Oil | Universal stub pump | 3/4" NPT (F) | 200 mm (7,9") | 716 mm (28,2") |
| 537630 | Oil | Universal stub pump | 3/4" BSP (F) | 200 mm (7,9") | 716 mm (28,2") |
