Ref.: 536630
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 45, PM45 - 6:1, STUB
Ref.: 536630
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 45, PM45 - 6:1, STUB

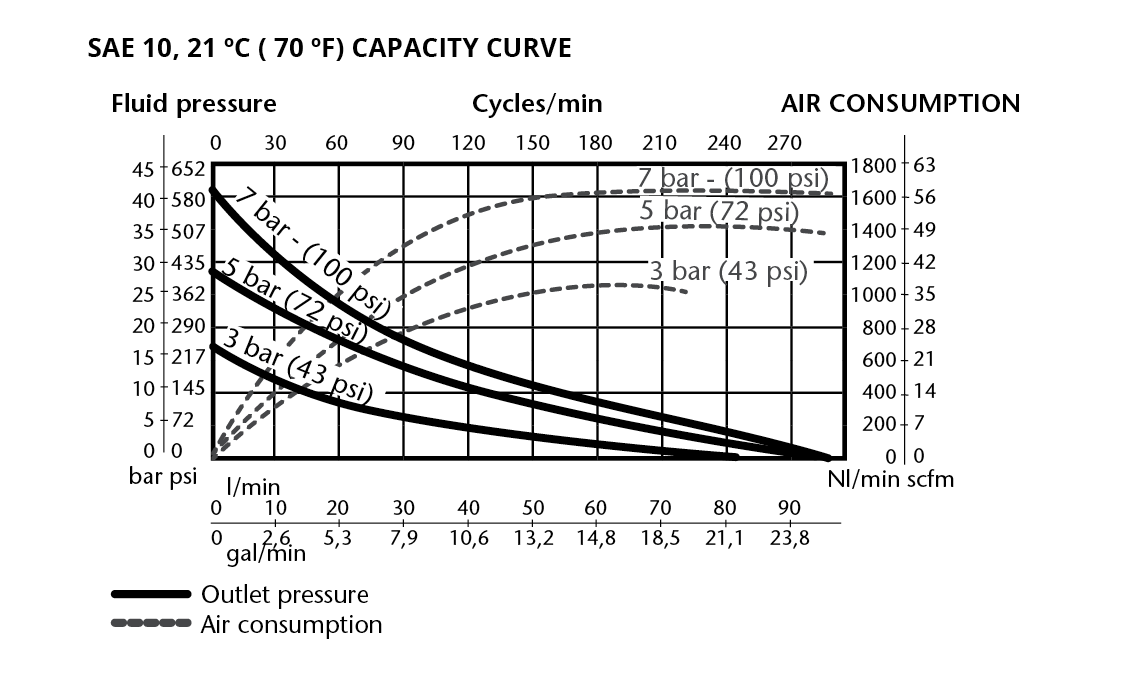

PM45 series air operated piston pumps. Double acting air operated medium pressure for large systems with simultaneous operation outlets that require a high delivery pump. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 80 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery. Instruction book: 853802.
About this product:
File 536630
Technical data
Documentation
More information
| Fluids | Oil |
| Compatible fluids | Oil, Transmission fluid |
| Pump mounting | Universal stub pump |
| Pressure ratio | 6:1 |
| Air pressure operating range | 1,5-12 bar (21,75-174 psi) |
| Air consumption | 830 NL/min (29 scfm) |
| Maximum outlet pressure | 72 bar (1044 psi) |
| Air motor effective diameter | 115 mm (4,5") |
| Air motor stroke | 100 mm (4") |
| Delivery per cycle | 25 l (6,6 gal) |
| Cycles per minute (aprox.) | 80 cycles |
| Delivery | 25 l/min (6,6 gal/min) |
| Maximum free flow delivery | 95 l/min (25,1 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid inlet type | Ball check |
| Fluid outlet | 3/4" BSP (F) |
| Wetted materials | Cast iron, Hard chromed steel, Steel, Polyurethane, NBR |
| Pump tube material | Carbon steel |
| Sound level | 80 dB |

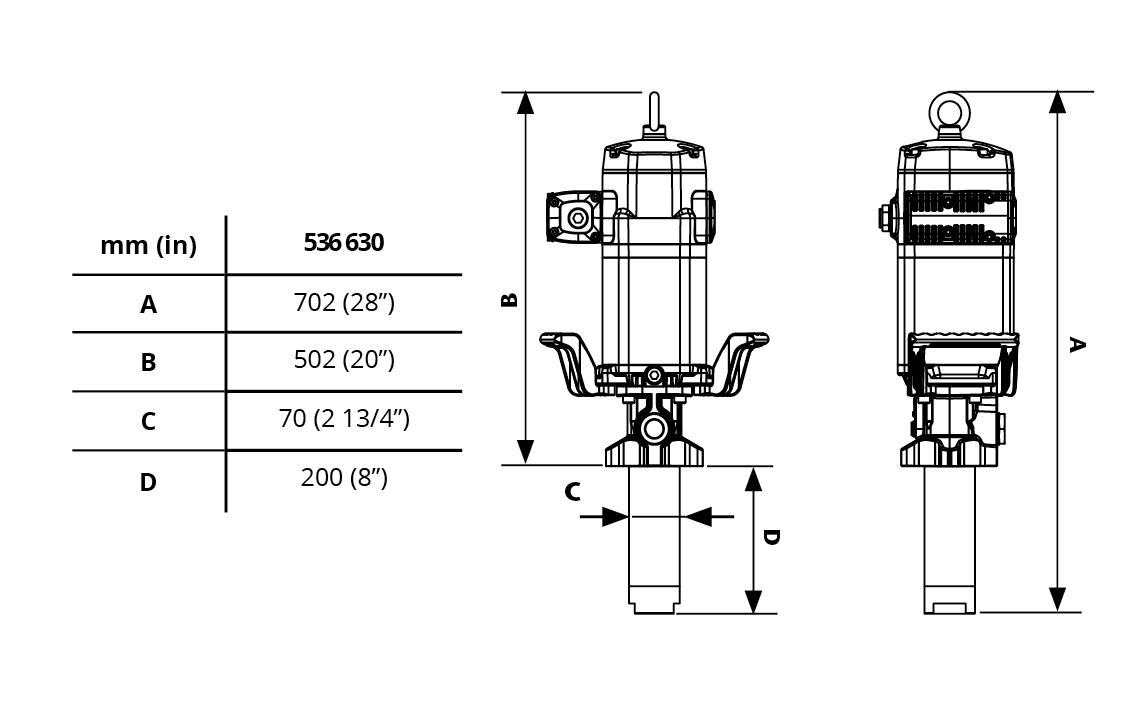

| Tube height | 200 mm (7,9") |
| Total height | 702 mm (2,3") |
| Weight | 17 kg (37,5 lb) |
Models
| Code | Fluids | Pump mounting | Fluid outlet | Tube height | Total height |
|---|---|---|---|---|---|
| 536630 | Oil | Universal stub pump | 3/4" BSP (F) | 200 mm (7,9") | 702 mm (2,3") |
| 536631 | Oil | Universal stub pump | 3/4" NPT (F) | 200 mm (7,9") | 702 mm (2,3") |
