Ref.: 504250
HEAVY DUTY HOSE REEL, RM-12L SERIES, 15 M, 1/2", LUBRICANT OIL
Ref.: 504250
HEAVY DUTY HOSE REEL, RM-12L SERIES, 15 M, 1/2", LUBRICANT OIL
Very tough construction able to stand regular use and abuse in Intensive
Duty applications. Fatigue resistant steel spring for years of durable

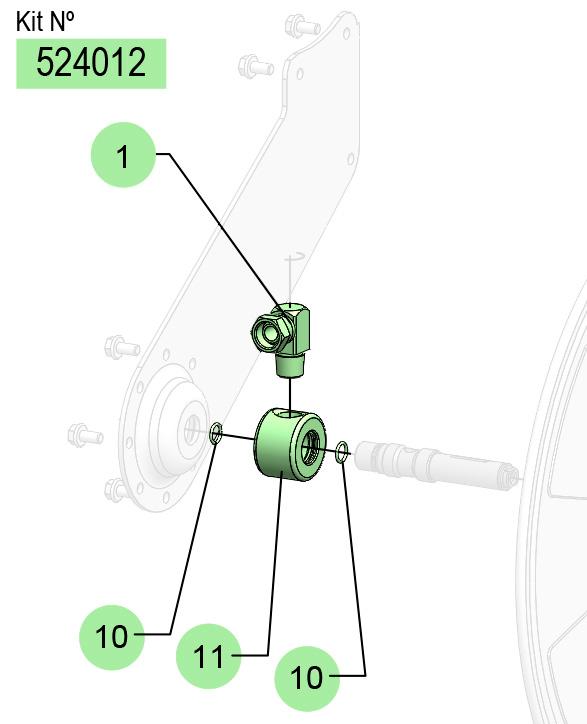

performance and even load when pulling and recoiling the hose. Full port
shaft and swivel for no restrictions. Spool mounted on two permanent
lubricated and sealed ball bearings to reduce torque load on spring for
smooth retraction and longer life. Large effective radial latching area
for easier operation. Hose guide arm can be placed in different
positions to accommodate any method of mounting. Narrow footprint allows

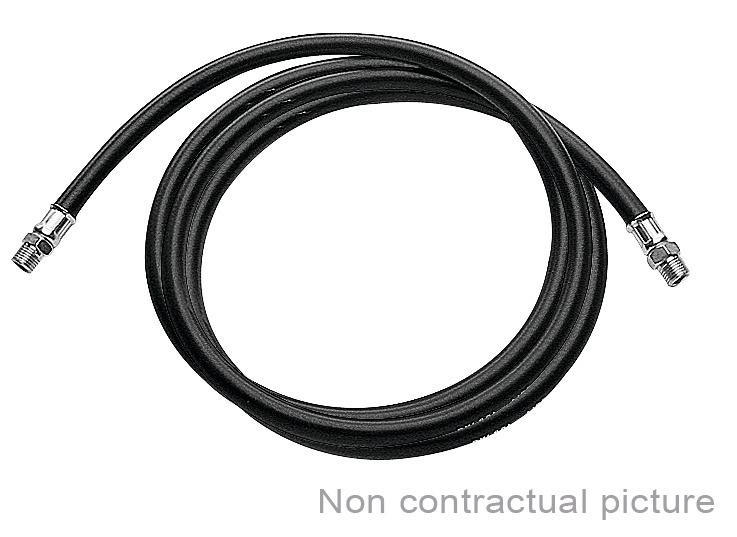

accommodating more reels on the same surface. Hose reels with hose
include 0,8 m inlet hose. Model with 15 m 1/2" hose for LUBRICANT
OIL. Instruction books: 850836 and 836823.
About this product:
File 504250
Technical data
Documentation
More information
| Compatible fluids | Oil |
| Hose in diameter | 1/2" |
| Hose length | 15 m (49,21 ft) |
| Fluid Inlet | 1/2" BSP (M) |
| Fluid outlet | 1/2" BSP (M) |
| Working Pressure | 160 bar (2320 psi) |
| Installation options | Floor, Wall, Ceiling, Tank |
| Bare reel part number | 504259 |
| Weight | 24 kg (53 lb) |
Models
| Code | Compatible fluids | Hose in diameter | Hose length | Working Pressure |
|---|---|---|---|---|
| 504250 | Oil | 1/2" | 15 m (49,21 ft) | 160 bar (2320 psi) |
| 504450 | Water | 3/8" | 15 m (49,21 ft) | 200 bar (2900 psi) |
| 504351 | Grease, Oil | 3/8" | 15 m (49,21 ft) | 280 bar (4060 psi) |
| 504350 | Grease, Oil | 1/4" | 15 m (49,21 ft) | 350 bar (5075 psi) |
| 504150 | Air, Water, Coolant | 1/2" | 15 m (49,21 ft) | 15 bar (220 psi) |
