SAMOA Industrial
Ref.: 504150

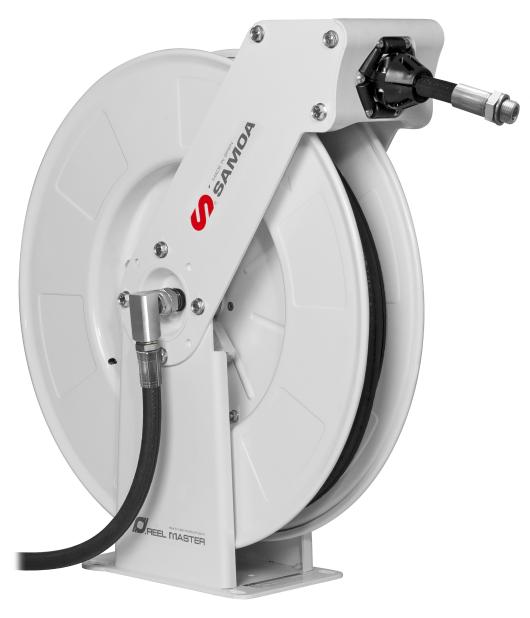

HEAVY DUTY HOSE REEL, RM-12L SERIES, 15 M, 1/2", AIR / WATER / COOLANT
Ref.: 504150
HEAVY DUTY HOSE REEL, RM-12L SERIES, 15 M, 1/2", AIR / WATER / COOLANT
Very tough construction able to stand regular use and abuse in Intensive

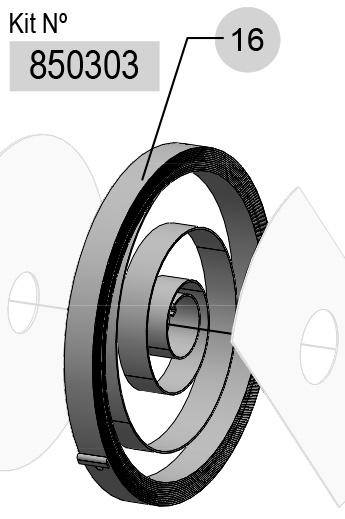

Duty applications. Fatigue resistant steel spring for years of durable
performance and even load when pulling and recoiling the hose. Full port

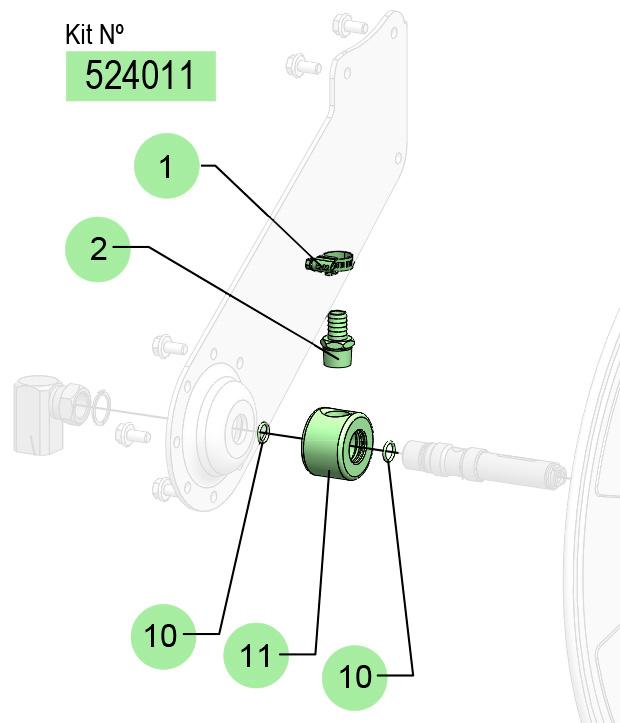

shaft and swivel for no restrictions. Spool mounted on two permanent
lubricated and sealed ball bearings to reduce torque load on spring for

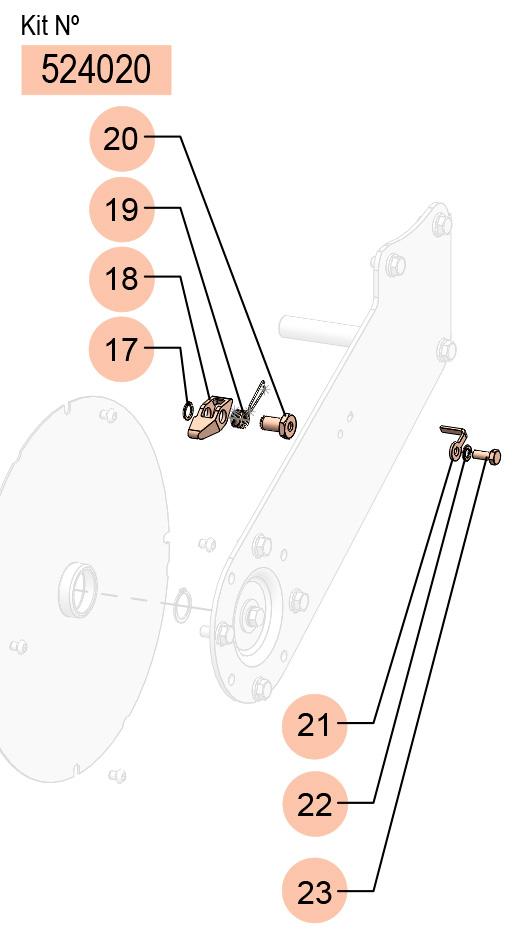

smooth retraction and longer life. Large effective radial latching area
for easier operation. Hose guide arm can be placed in different
positions to accommodate any method of mounting. Narrow footprint allows

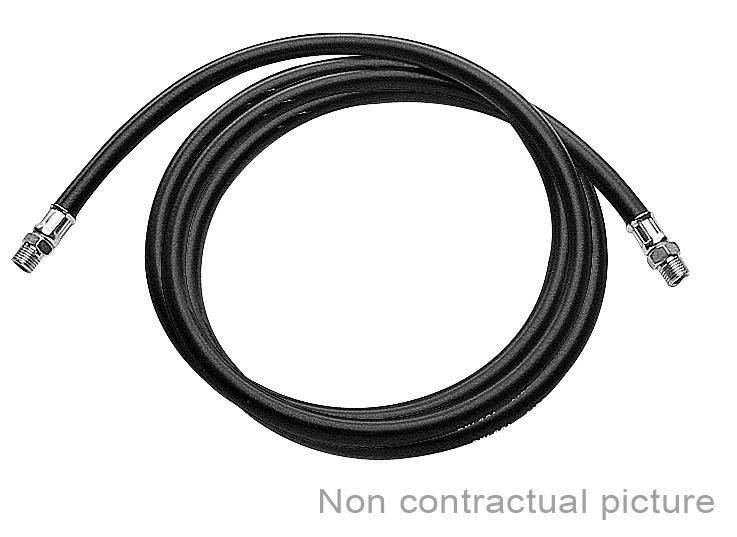

accommodating more reels on the same surface. Hose reels with hose
include 0,8 m inlet hose. Model with 15 m 1/2" hose for AIR / WATER
/ COOLANT. Instruction books: 850836 and 836823.
About this product:
File 504150
Technical data
Documentation
More information
| Compatible fluids | Air, Water, Coolant |
| Hose in diameter | 1/2" |
| Hose length | 15 m (49,21 ft) |
| Fluid Inlet | 1/2" BSP (M) |
| Fluid outlet | 1/2" BSP (M) |
| Working Pressure | 15 bar (220 psi) |
| Installation options | Floor, Wall, Ceiling, Tank |
| Bare reel part number | 504159 |
| Weight | 24 kg (53 lb) |
Models
| Code | Compatible fluids | Hose in diameter | Hose length | Working Pressure |
|---|---|---|---|---|
| 504150 | Air, Water, Coolant | 1/2" | 15 m (49,21 ft) | 15 bar (220 psi) |
| 504450 | Water | 3/8" | 15 m (49,21 ft) | 200 bar (2900 psi) |
| 504351 | Grease, Oil | 3/8" | 15 m (49,21 ft) | 280 bar (4060 psi) |
| 504350 | Grease, Oil | 1/4" | 15 m (49,21 ft) | 350 bar (5075 psi) |
| 504250 | Oil | 1/2" | 15 m (49,21 ft) | 160 bar (2320 psi) |
