Ref.: 415012

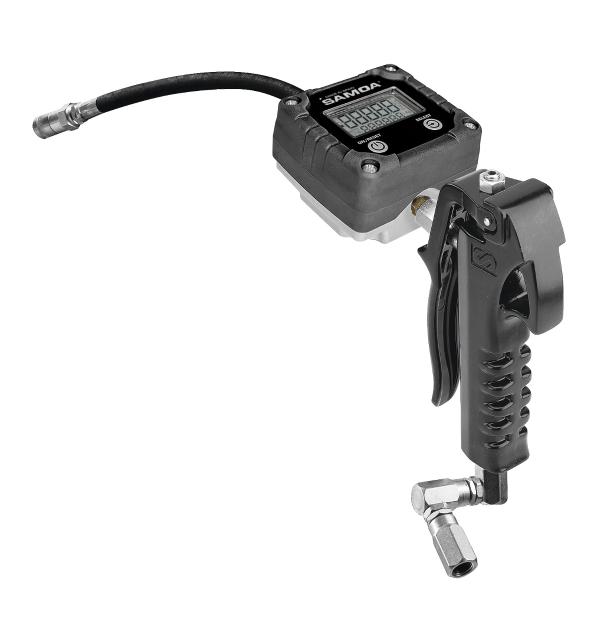

DIGITAL METERED CONTROL VALVE, PG500-14/FM SERIES, 2,5 KG/MIN, GREASE, FLEXIBLE OUTLET, Z-SWIVEL
Ref.: 415012
DIGITAL METERED CONTROL VALVE, PG500-14/FM SERIES, 2,5 KG/MIN, GREASE, FLEXIBLE OUTLET, Z-SWIVEL
High pressure grease meter guns with ergonomic body and trigger designed to reduce operator hand fatigue. Manufactured in aluminium with steel insert for high pressure. Flexible outlet with 3 jaw connector and Z-swivel. High pressure oval gear grease meter with digital display, 1/8" inlet / outlet connection. Works with up to NLGI-2 grease. Shock proof, Clear to read, Increased durability, Easy to replace batteries and calibration function. Aluminium body, Acetal oval gear technology and Strengthened PC cover. Works with two 1,5 V AAA alkaline batteries. Youtube video: https://youtu.be/wBkymrU0Wv8 Instruction books: 841801 and 841810.
About this product:
File 415012
Technical data
Documentation
More information
| Compatible fluids | Grease |
| Maximum free flow delivery | 2,5 kg/min (5,5 lb/min) |
| Accuracy | 0.02 |
| Maximum outlet pressure | 500 bar (7250 psi) |
| Operating temperature range | -10 - 55 ⁰C (14-131 ⁰F) |
| Inlet size | 1/4" |
| Fluid inlet | 1/4" BSP (F) |
| Outlet type | Z-swivel, flexible tube, grease connector |
| Meter | Digital |
| Metric | Litres, Gallons, Pints, Quarts |
| Wetted materials | Aluminium Acetal Nbr Stainless Steel Zinc Plated Steel |
| Weight | 1,5 kg (3 lb) |
