Ref.: 186311
CONTROL VALVE, FV50 SERIES, 30 L/MIN, RIGID OUTLET
Ref.: 186311
CONTROL VALVE, FV50 SERIES, 30 L/MIN, RIGID OUTLET
SAMOA Fluid Handle FV50 Series, with up to 30l/min flow range, 50 Bar maximum pressure, 1/2" inlet swivel and rigid outlet. Main benefits: · High chemichal compatibility · Easy flanged meter connection. · improved ergonomic design. · Increased security. Instruction book: 896854.
About this product:
File 186311
Fluid handle SAMOA FV50 - Multifluid gun or fluid valve.
Technical data
Documentation
More information
| Compatible fluids | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid |
| Maximum free flow delivery | 30 l/min (7,9 gal/min) |
| Maximum outlet pressure | 50 bar (725 psi) |
| Operating temperature range | -10 - 50 ⁰C (14-122 ⁰F) |
| Inlet size | 1/2" |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |

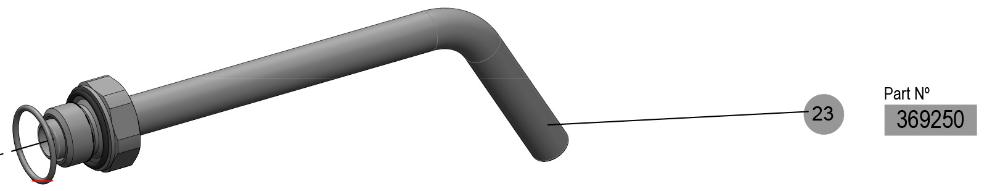

| Outlet type | 60° rigid tube |
| Meter | No meter |
| Wetted materials | Polypropylene, Stainless steel, Acetal, Polyamide, Viton |
| Weight | 0,28 kg (0,6 lb) |
Models
| Code | Compatible fluids | Inlet size | Outlet type |
|---|---|---|---|
| 186311 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | 60° rigid tube |
| 186313 | Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | 90° flexible tube, quarter turn manual tip |
| 186312 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | Flexible tube |
| 186310 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | No outlet |
| 186300 | Windscreen washer, Glycol, Water based fluids | 1/2" | 90° flexible tube, quarter turn manual tip |
