Dispensing valves: pf - 186300 - Product detail
SAMOA Industrial
Ref.: 186300

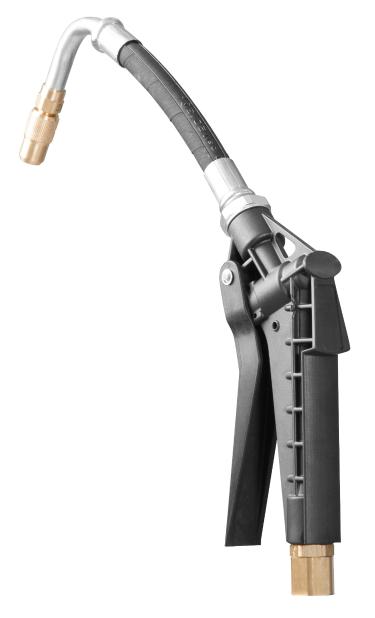

CONTROL VALVE, 30 L/MIN, WATER BASED FLUIDS, FLEXIBLE OUTLET 90° TUBE, QUARTER TURN
Ref.: 186300
CONTROL VALVE, 30 L/MIN, WATER BASED FLUIDS, FLEXIBLE OUTLET 90° TUBE, QUARTER TURN
Delivery gun with reinforced polyamide body and stainless steel valve mechanism for use with fluids like. Instruction book: 818800.
About this product:
File 186300
Technical data
Documentation
More information
| Compatible fluids | Windscreen washer, Glycol, Water based fluids |
| Maximum free flow delivery | 30 l/min (8 gal/min) |
| Maximum outlet pressure | 50 bar (725 psi) |
| Operating temperature range | -10 - 50 ⁰C (14-122 ⁰F) |
| Inlet size | 1/2" |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Outlet type | 90° flexible tube, quarter turn manual tip |
| Meter | No meter |
| Wetted materials | Thermoplastic, Brass, Rubber, Zinc plated steel, PVC |
| Weight | 0,57 kg (1,25 lb) |
Models
| Code | Compatible fluids | Inlet size | Outlet type |
|---|---|---|---|
| 186300 | Windscreen washer, Glycol, Water based fluids | 1/2" | 90° flexible tube, quarter turn manual tip |
| 186313 | Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | 90° flexible tube, quarter turn manual tip |
| 186312 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | Flexible tube |
| 186311 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | 60° rigid tube |
| 186310 | AdBlue/DEF, Windscreen washer, Coolant, Glycol, Water, Brake fluid | 1/2" | No outlet |
