Dispensing valves: bn - 688100 - Product detail
SAMOA Industrial
Ref.: 688100

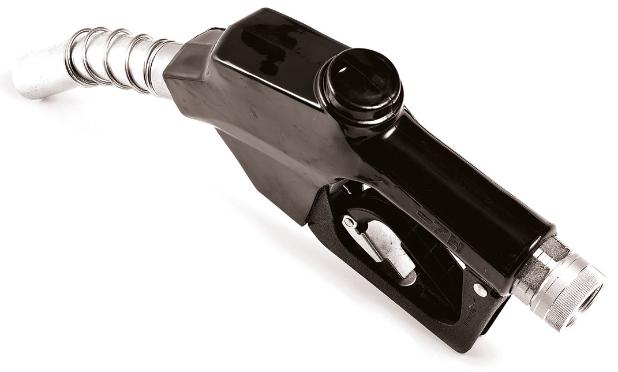

ALUMINIUM AUTOMATIC NOZZLE, 120 L/MIN, 1" BSP (F) INLET
Ref.: 688100
ALUMINIUM AUTOMATIC NOZZLE, 120 L/MIN, 1" BSP (F) INLET
Aluminium automatic nozzle. Fluid inlet: BSP (F) - 120 l/min.
About this product:
File 688100
Technical data
Documentation
More information
| Compatible fluids | Diesel |
| Maximum free flow delivery | 120 l/min (31,7 gal/min) |
| Maximum outlet pressure | 3 bar (43,5 psi) |
| Operating temperature range | -20 - 55 ⁰C (-4-131 ⁰F) |
| Inlet size | 1" |
| Fluid inlet | 1" BSP (F) |
| Outlet type | No outlet |
| Meter | No meter |
| Wetted materials | Aluminium, Stainless steel, Viton, NBR |
| Weight | 1,7 kg (3,8 lb) |
